Why GoodWe Batteries?

GoodWe home batteries allow you to maximise the use of your solar power and minimise your energy bills by storing excess electricity produced during the day for use:

  • at night
  • on low sunlight days
  • when utility rates are more expensive
  • during blackouts.


Model LX F6.6-H LX F9.8-H LX F9.8-H LX F16.4-H
Rated Energy(kWh)* 6.55 9.83 13.10 16.38
Usable Energy (kWh)* 6.55 9.83 13.10 16.38
Battery Module LX F3.3-H: 102.4V 3.27kWh
Number of Modules 2 3 4 5
Cell Type LFP (LiFePO4)
Cell configuration 64S1P 96S1P 128S1P 160S1P
Rated Capacity(Ah) 32
Nominal Voltage (V) 204.8 307.2 409.6 512
Rated DC Power(kW)* 5.12 114 kg 171 kg 228 kg
Operating Voltage Range (V) 182.4 ~ 230.4 273.6 ~ 345.6 364.8 ~ 460.8 456 ~ 576
Max. Charging/Discharging Current (A)* 25
Max. Charging/Discharging Power (kW) 6.1 9.2 12.2 15.3
Fault current(A) 3000 4600 3500 3000
Operating temperature Charge: 0 ~ +50; Discharge: -20 ~ +50
Relative Humidity 0~95%
Max. Operating Altitude (m) 2000
Communication CAN
Weight (kg) 115 158 201 244
Dimensions (W × H × D mm) 600 × 610 × 380 600 × 765 × 380 600 × 920 × 380 600 × 1075 × 380
Ingress Protection Rating IP55
Mounting Method Grounded
Warranty 10 Years (Performance Warranty) / 10 Years (Product Warranty)

Standards and Certification





IEC62619, IEC62040, VDE2510-50, CEC




*1: Test conditions, 100% DOD, 0.2C charge & discharge at +25±2°C for battery system at beginning life. System usable energy may vary with different inverters. *2: Nominal
dis-/charge current and power derating will occur related to temperature and SOC. *: Please visit GoodWe website for the latest certificates.

* GEH Inverters have a maximum of 4 batteries per tower.

Why GoodWe Lynx High Voltage Batteries?

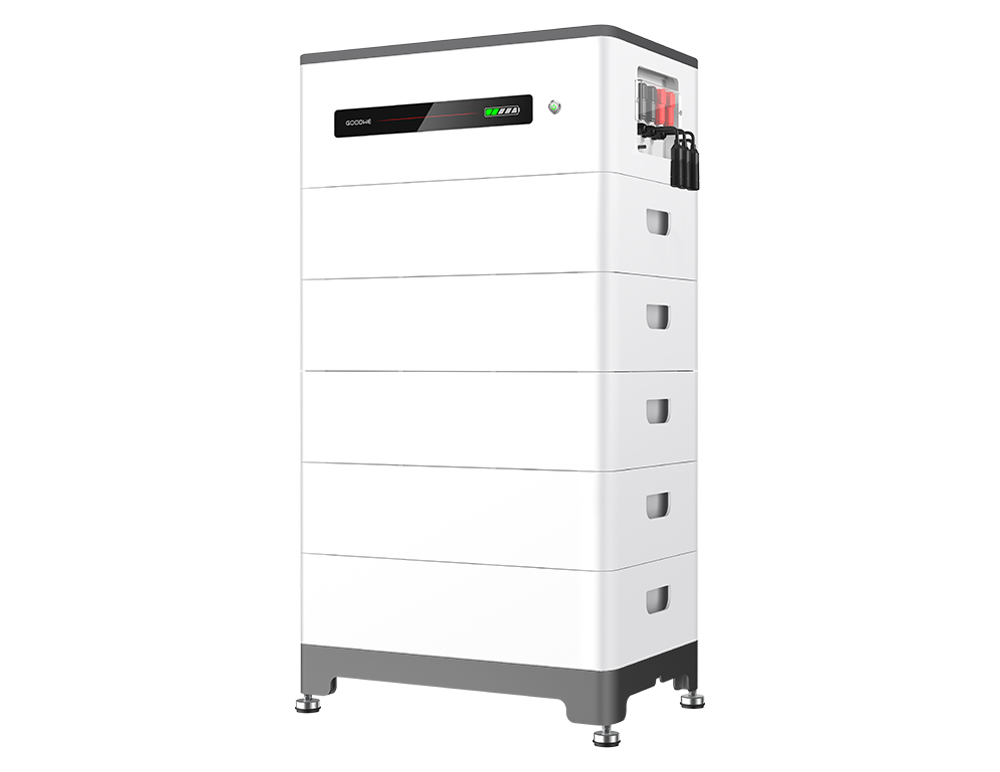

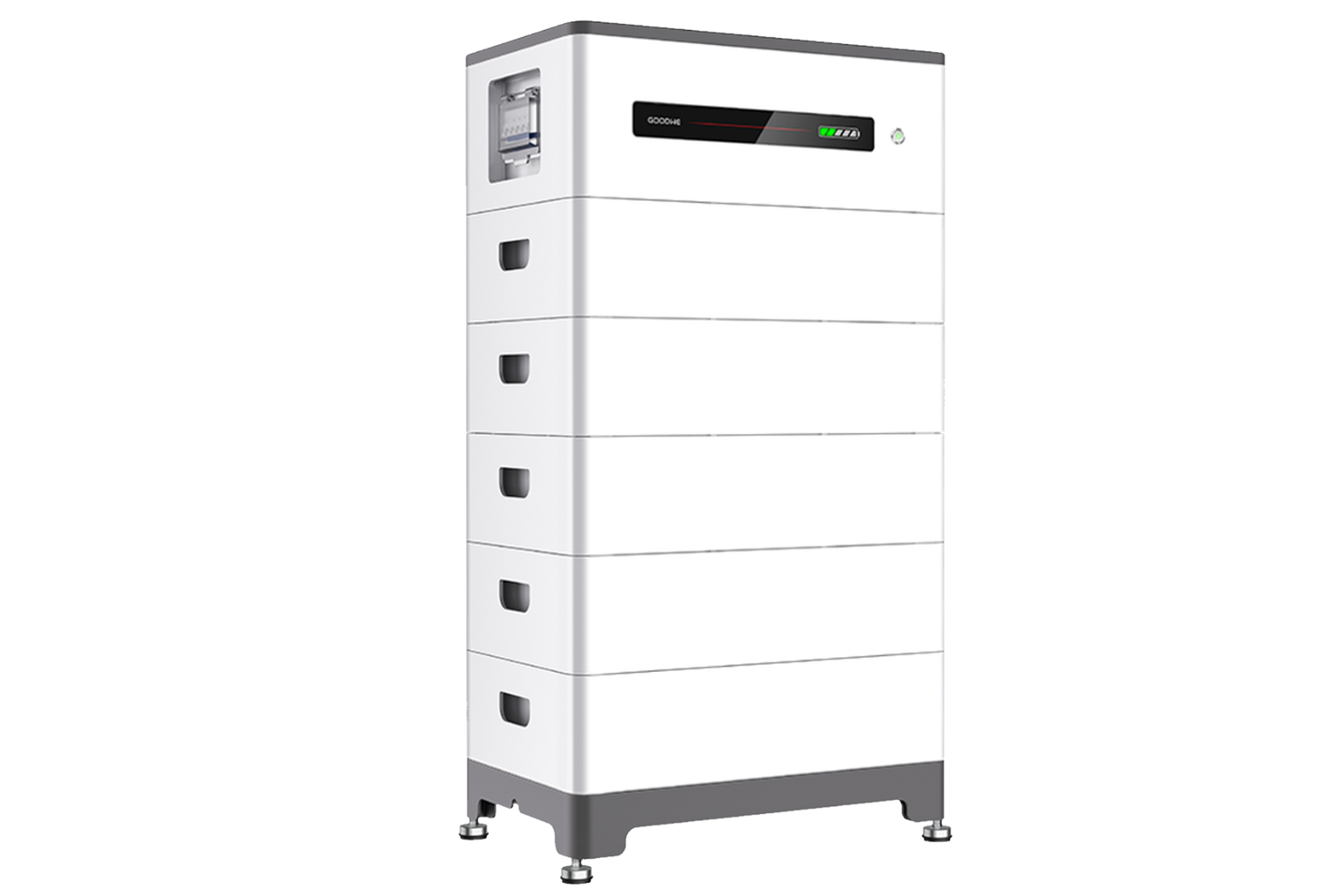

The GoodWe Lynx High Voltage batteries (F Series) are designed with superior performance, flexibility safety and expandability in mind. They are perfect for single or three phase homes and businesses.

This world class lithium-ion battery can recharge using electricity generated from your solar panels or the grid when utility rates are low. It then sends power to your home or business in the evening, when the sun is not shining, or when utility rates are higher. The battery also serves as a backup in the event of a blackout.

The GoodWe Lynx High Voltage batteries feature a modular design that’s easy to install and easy to scale-up as your needs change. They offer a wide capacity range from 6.6kWh to 16.4kWh per battery tower and up to 131 kWh energy storage (8 towers) when linked together. This protects against the ever-changing energy requirements of homes and businesses e.g. Electric Vehicle charging.

For more information download the following brochures:

GoodWe Lynx F Series Brochure


How you benefit:

High Efficiency
Store more of your solar energy for self-consumption and reduce your energy costs.

Modular Design
Scalable battery module design allows you to choose the most appropriate system for your household and then expand your storage capacity as your needs change.

Safety and Reliability
Extensive life-testing of the Lithium Iron Phosphate (LFP) battery chemistry ensures reliability, energy retention and superior safety levels.

Solahart Warranty
Enjoy a 10-year product warranty and a 10-year performance warranty for extra peace of mind.

GoodWe Lynx High Voltage Battery Downloads


GoodWe Lynx High Voltage Battery Brochure: Download

GoodWe Lynx High Voltage Battery Quick Start Guide: Download

GoodWe Lynx High Voltage Battery Owners Guide: Download
