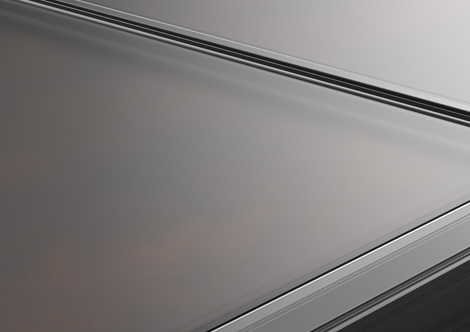

The CS13C series features the Australian designed Envelope solar collector, offering the latest in styling and all weather durability, and with five patents pending has been designed to meet or exceed Australian and International Standards in areas of strength and durability. The CSA2013 collector's higher efficiency absorber with its Sputtered Selective Surface maximises the absorption of available solar energy while the closed circuit design makes it suitable for frost prone or poor water chemistry areas.
The CS13C Series features Solahart's revolutionary multi-riser collector to extract the maximum amount of energy from the sun. This is used to heat the Hartgard fluid in the collector which rises into the heat exchanger where the heat is transferred to the water inside of the tank. The ceramic lined tank has a protective anode for additional protection.
- Space saving roof mount design
- Reliable, low maintenance operation
- Energy Efficient – cuts water heating energy use by up to 87%^
- Eligible for Government rebates and incentives
* The suggested price is comprised of RRP less the applicable solar incentive and excluding installation. Solar incentive value applies to 181CS13C system in Zone 3.
^ Energy savings of up to 55% to 90% shown are based on Australian Government approved TRNSYS simulation modelling using a medium load. Savings and incentives will vary depending upon your location, type of Solahart system installed, orientation and inclination of the solar collectors, type of water heater being replaced, hot water consumption and fuel tariff. Maximum financial savings off your hot water bill are achievable when replacing an electric water heater on continuous tariff.
† Solahart Warranty Details: 5/5/5 warranty; 5 year cylinder and collectors supply, 5 year parts, 5 year labour. 10/5/5 warranty, 10 year cylinder and collectors supply, 5 year parts, 5 year labour.
181CS13C Solar Specifications
|Thermosiphon CS13C Closed Circuit Systems|
|Storage Capacity||180 litres|
|Boost Capacity||90 litres|
|Weight Empty Tank Only||75 kg|
|Weight Full Tank Only||254 kg|
|A-Width* Tank Only||1.62 m|
|Weight Empty System||131 kg|
|Weight Full System||324 kg|
|A-Width* System||1.62 m|
* For safe access and servicing, a space equal to the tank length should be left on the water connection end of the system and 1m (40in) should be left on the three other sides of the installation. ‡HartStat OTP is mandatory on these models in Australia and New Zealand. Systems (if installed with a HartStat OTP system) can be installed as a solar preheater with an inline Solahart gas booster water heater. Refer to the Solahart gas booster specification sheet for further details on the gas booster.
|Aperture Area||1.8 m2|
|Weight Empty||37 kg|
|Weight Full||39 kg|
|No OTP||80 kPa|
|With OTP||170 kPa|
|Absorber Surface SCA2000||Blue Tinox sputtered selective surface|
|Number of Risers||13|
|Frame Material||extruded aluminium|
|Insulation Material (Base)||38 mm glass wool blanket|
|Glass||3.2 mm tempered low iron|
|TPR Valve Setting||1000 kPa|
|ECV* Setting||850 kPa|
|Maximum Supply Pressure|
|With ECV||680 kPa|
|Without ECV||800 kPa|
*Expansion Control Valve.
|Electric Boost Specifications|
|Heating Unit Type||Copper sheath immersion element|
|Supply Voltage||220 V - 250 V|
|Recovery Rate @ 240 V and Temperature Rise Of:|
* A bobbin element (2.5kW) is available for hard or corrosive water areas.
How Roof Top Solar Systems Work

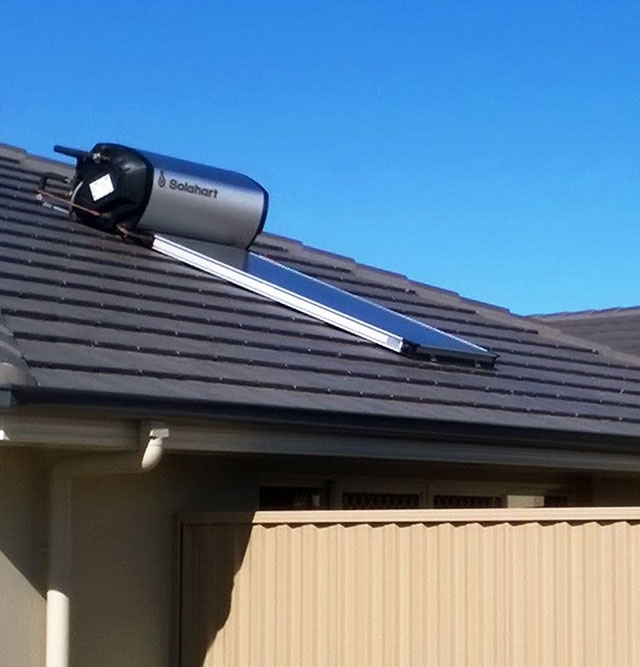

The 181CS13C solar system has its vitreous enamel lined solar storage tank installed on the roof directly coupled to the solar collectors. In the Closed Circuit Series, heat is absorbed by the collector and passed to the ‘Hartgard’ heat transfer liquid inside the collector. As the temperature of the ‘Hartgard’ increases, the hot fluid rises up through the collector by the Natural Thermosiphon Principle, into the heat exchanger jacket around the potable water storage tank. Here, the heat is transferred to the potable water, cooling the ‘Hartgard’ fluid. The cooler fluid is then forced back down into the collectors through the displacement action of further hot fluid rising up into the heat exchanger jacket.
To help maximise system performance, solar collectors should be installed with an optimum orientation facing true north (in the southern hemisphere) or true south (in the northern hemisphere). Always check for true north or true south using a compass or other suitable device.
To help maximise system performance, solar collectors should be installed with an optimum inclination. This is equal to 90% to 100% of the local latitude angle when collectors are oriented within 60° of true north or true south, and between 10° and 20° if the collectors are oriented between 60° and 90° from the optimum orientation. Generally, improved summer performance is obtained from an angle of inclination less than the optimum angle and improved winter performance is obtained by an angle of inclination greater than the optimum angle. If the angle of inclination varies by 20° from the optimum angle, the solar collectors will receive about 10% less total annual solar radiation.
Solahart Closed Circuit Systems are protected against freezing or harsh water conditions by our exclusive ‘Hartgard’ fluid. ‘Hartgard’ is a blue, non-toxic, propylene glycol fluid which, when mixed with water, provides the Heat Transfer Fluid contained in the solar collectors and the heat exchanger jacket around the tank. ‘Hartgard’ is used to lower the freezing temperature of the Heat Transfer Fluid and so provides protection against freezing (Note: for the correct % of Hartgard in the Heat Transfer Fluid, refer to the section on Frost / Freeze Protection). ‘Hartgard’ is a special food grade solution and is the only solution permitted to be used in the closed circuit systems. Hartgard has been approved by the National Health and Medical Research Council of Australia.
In-Series Gas Boosting
An in-series gas booster (also known as an instantaneous gas booster) can be installed between the solar water heater and the hot outlets in the house. This booster should be permanently active. The booster senses the temperature of the water passing through it: if the water temperature is above its temperature setting it does nothing; if below it will automatically heat the water up to the preset outlet temperature setting. This device ensures hot water delivery for a variety of hot water demands without the need for user intervention while enabling maximum solar energy contribution to the water heating. For more information on this booster, consult the owner’s manual for the product.
